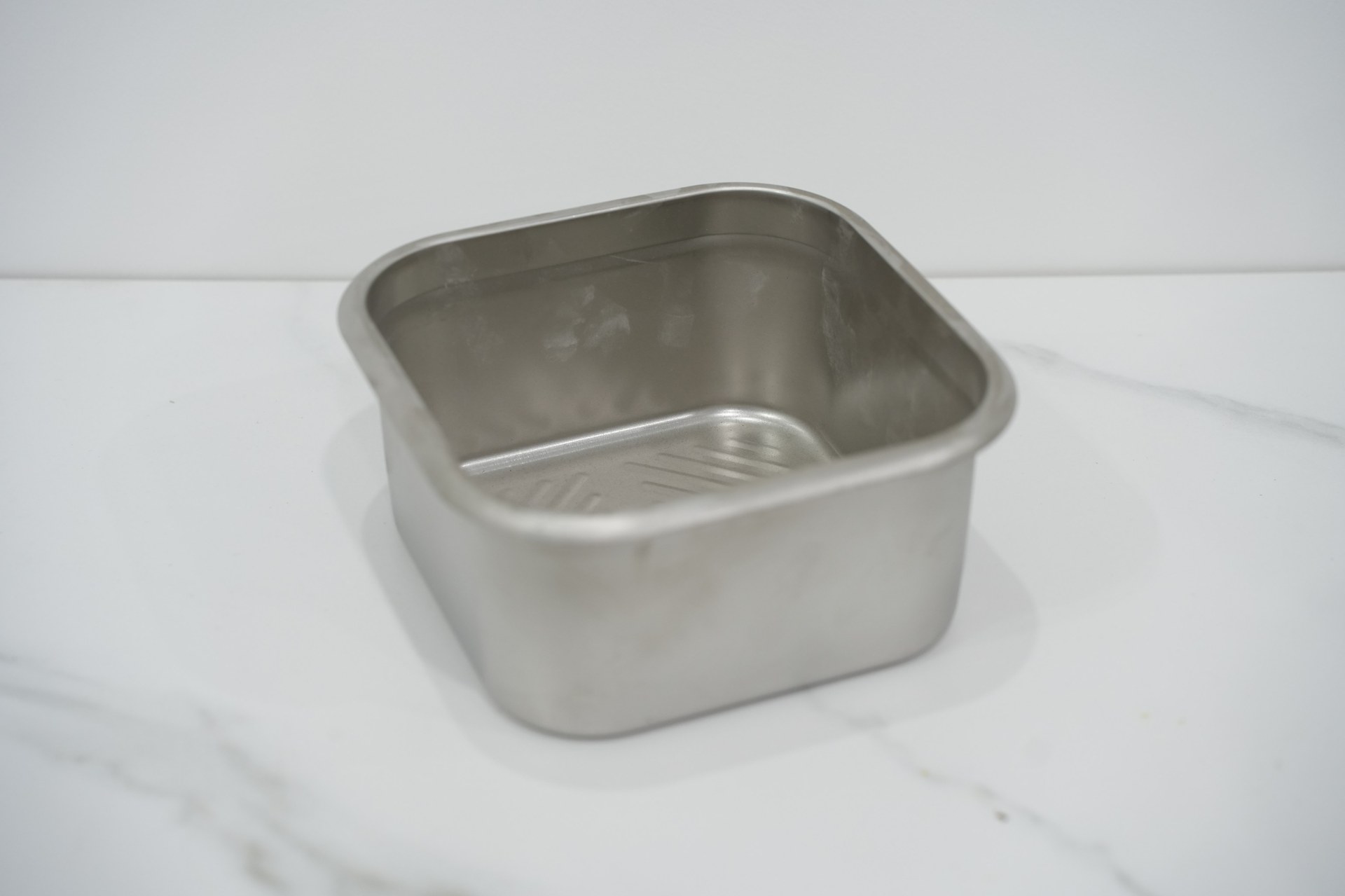

Espresso Machine Drip Tray OEM — Drawn Stainless Parts
Drawn and stamped stainless espresso drip trays for coffee machine OEM. Platform outline, drain slots, and brushed cosmetic tiers follow your print — export programs with agreed O… Read full overview
- Focus — Espresso drip tray outline + drains
- Process — Stamp / shallow draw + drain features
- Finish — Brushed / satin standard options
- Fit — Platform outline from your drawing
- Material
- SS201 / 304 / 316 (program-specific)
- Volume & MOQ
- MOQs are program-specific — share annual volume tiers for cavitation and landed pricing.
New geometry not previously produced?
Many OEM programs begin with new geometry. With 60+ owned molds, 200+ customer molds under management, multi-pass deep drawing capability, and DFM review, we assess whether your stainless shell can progress from sampling to serial production.
RFQ package should include:
- Engineering drawing or dimensional sample photos with critical dimensions
- Annual volume tiers and target delivery window
- Material grade, thickness, surface finish, and compliance market
- Critical mating and quality features: hub interface, weld load capacity, rim circularity, or cosmetic acceptance criteria
SGS / RoHS / REACH documentation available on request for qualified OEM programs.
Program overview
Drawn and stamped stainless espresso drip trays for coffee machine OEM. Platform outline, drain slots, and brushed cosmetic tiers follow your print — export programs with agreed OQC cosmetics.
What this program shows
- Tray outlines matched to countertop espresso platforms
- Drain slot or hole patterns from engineering drawings
- Brushed / satin finishes for retail and HORECA looks
- Deburr standards for cleaning and finger safety
Send the tray outline, drain layout, and finish note with volume tiers for a forming and tooling quote.
See related reference programs under Coffee Equipment Components on this site — same factory, same drawing-based workflow. Related cards appear below when available.
Specifications
| Focus | Espresso drip tray outline + drains | Process | Stamp / shallow draw + drain features |
|---|---|---|---|
| Finish | Brushed / satin standard options | Fit | Platform outline from your drawing |
| Drain layout | Slots / holes per print | Program type | Reference program — not stock SKUs |
Customization from drawing
Quoted from your engineering drawing or approved reference sample — not offered as ex-stock catalog items. Typical adjustable parameters for this forming family:
| Part types | Pitchers, drip trays, water tank shells, knock-box cups | Spout / drain | Geometry from your drawing |
|---|---|---|---|
| Surface finishes | Mirror interior options, brushed exterior, spray coat | Handle options | Single / custom weld on pitcher programs |
| Logo / marking | Laser engraving, etching, steel stamp, silk screen | Material | Typically 304 food-contact; 201/316 per RFQ |
| Program type | Drawing-based OEM/ODM |
Compliance & documentation
We support appliance and HORECA OEM programs with ISO 9001-aligned QC, material traceability, and third-party tests (LFGB, FDA-oriented food contact, RoHS, REACH) coordinated per purchase order. See our Quality & compliance section for the full documentation matrix.
View quality & complianceFAQ for B2B buyers
Drawing-based OEM programs — not retail or ex-stock catalog parts.
- Can this part be ordered as shown from inventory?
- No. Each page is a reference program that documents forming capability on comparable tooling. Your part is evaluated from the engineering drawing or sample — geometry, depth, and mating interfaces may differ.
- Can you manufacture a geometry you have not produced before?
- Yes. Many OEM programs begin with new geometry. We assess DFM, tooling route, and whether the stainless shell can progress from sampling to serial production.
- What inputs are required for a quotation-ready RFQ?
- Engineering drawing or dimensional sample photos, annual volume tiers and target delivery window, material grade / thickness / finish and compliance market, plus critical mating and quality features such as hub interface, weld load capacity, rim circularity, or cosmetic acceptance criteria.
- How are MOQs and lead times determined?
- MOQs and schedules are program-specific. Provide volume tiers and required delivery windows so we can align cavity count, tooling, and production planning.
- Do you provide compliance documentation?
- SGS / RoHS / REACH and food-contact oriented tests can be coordinated per qualified program and purchase order. Request the documentation matrix applicable to your target market.
- Is this website intended for household retail purchasers?
- No. We serve appliance brands, sourcing companies, and B2B importers on OEM deep-drawing and stamping programs.
Request a custom quotation
Submit your drawing-based requirements; sales engineering will return a feasibility assessment and recommended next steps. Please include:
- Engineering drawing or dimensional sample photos with critical dimensions
- Annual volume tiers and target delivery window
- Material grade, thickness, surface finish, and compliance market
- Critical mating and quality features: hub interface, weld load capacity, rim circularity, or cosmetic acceptance criteria
